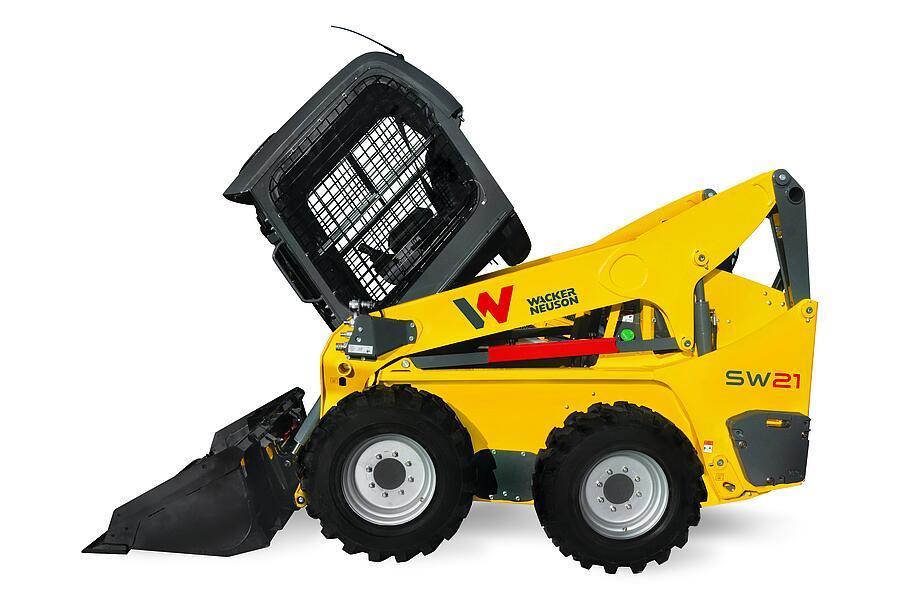

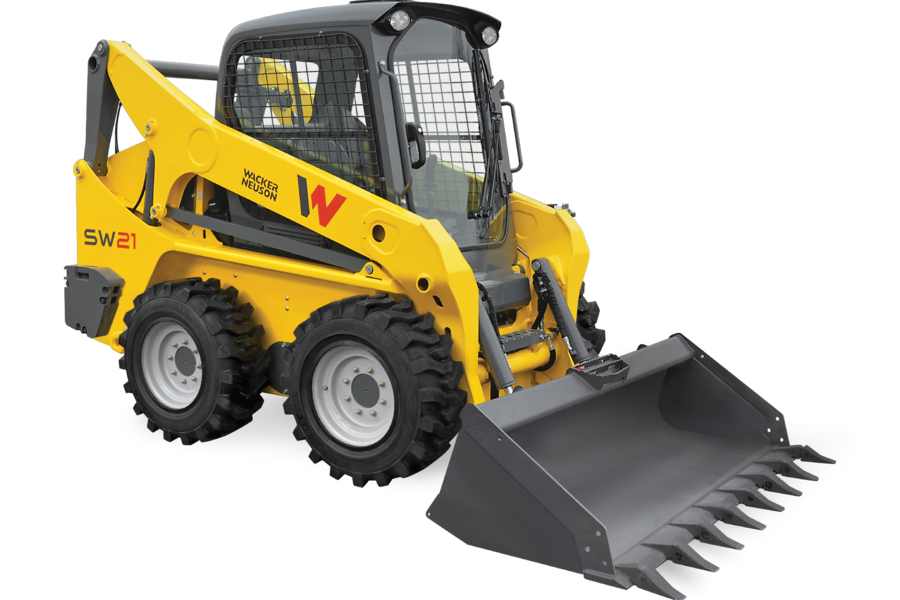

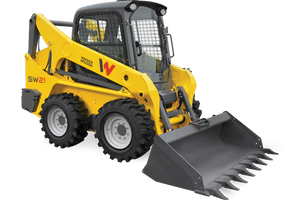

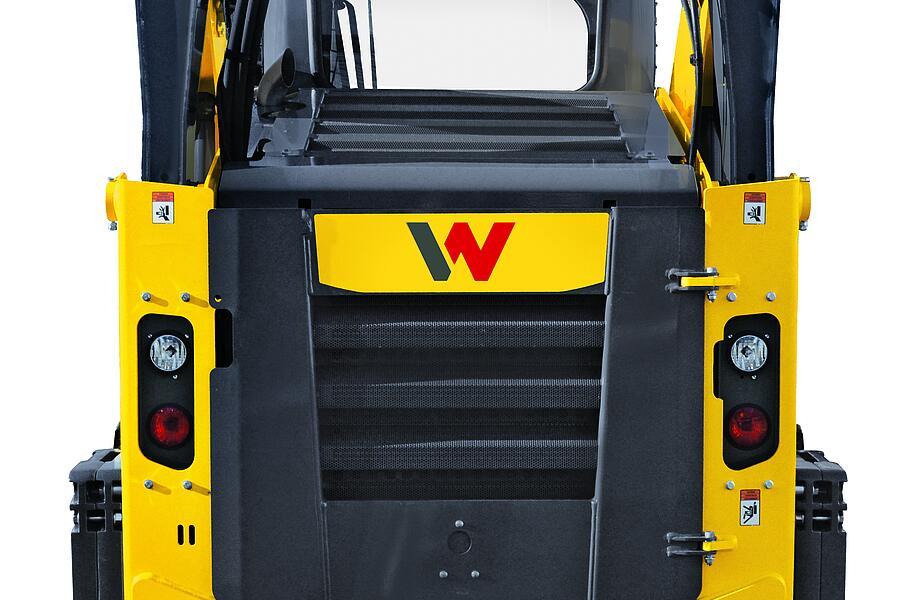

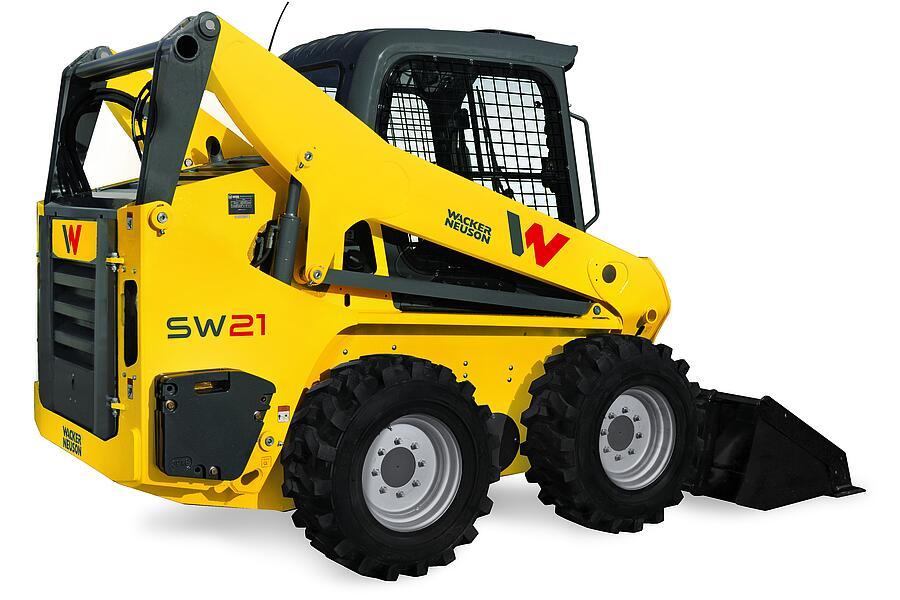

SW21 - Wheeled Skid Steer Loader

SKU 1000340717.01

SW21 - Wheeled Skid Steer Loader

SKU 1000340717.01

The Wacker Neuson SW21 is designed to tackle the most challenging projects. It features a 55 kW regeneration-free T4F engine and High Flow hydraulics for maximum hydraulic attachment performance. Get the job done with power and efficiency.

Enquire about this product

Enquire about this product

SW21 - Wheeled Skid Steer Loader

SKU 1000340717.01

SPECIFICATIONS

  • Break Out Force Bucket: 23,576N
  • Break Out Force Lift Arm: 22,241N
  • Tractive Effort Max at 100% effective force: 33,970N
  • Bucket Roll Back: 1.6s
  • Bucket Roll Out: 2.1s
  • Lift Arm Raise: 3.7s
  • Lift Arm Lower: 2.5s
  • Travel Speed Stage 1: 13.5km/h
  • Travel Speed Stage 2: 22.3km/h
  • Overall Length without bucket: 2,708mm
  • Overall Length with bucket: 3,425mm
  • Overall Width without bucket: 1,675mm
  • Overall Height to top off ROPS: 2,070mm
  • Overall Height to top off ROPS with large tyer option: 2,108mm
  • Bucket Hing Pin Height: 3,149mm
  • Bucket Roll Back at Ground: 3,187mm
  • Bucket Roll Back at Ground: 30 °
  • Bucket Roll Back at Maximum Height: 30 °
  • Angle of Departure: 24 °
  • Bucket Dump Height at Maximum Height: 2,451mm
  • Bucket Dump Heigh at Maximum Height: 42 °
  • Operating Weight: 2,953kg
  • Ground Clearance (Large Tyre Option): 230mm
  • Ground Clearance: 192mm
  • Dump Reach at Maximum Height: 962mm
  • Wheelbase: 1,104mm
  • Cylinder: 4
  • Cylinder capacity; 2,482cm3
  • Operating Power: 55 kW
  • Operating Engine Speed: 2,750 1/min
  • Manufacturer: Kohler
  • Flow Rate: 76 l/min
  • Flow Rate Max. 38 l/min
  • Auxiliary Relief Pressure: 241 bar
  • Fuel Tank Capacity: 124l
  • Tip Load: 1,905kg
