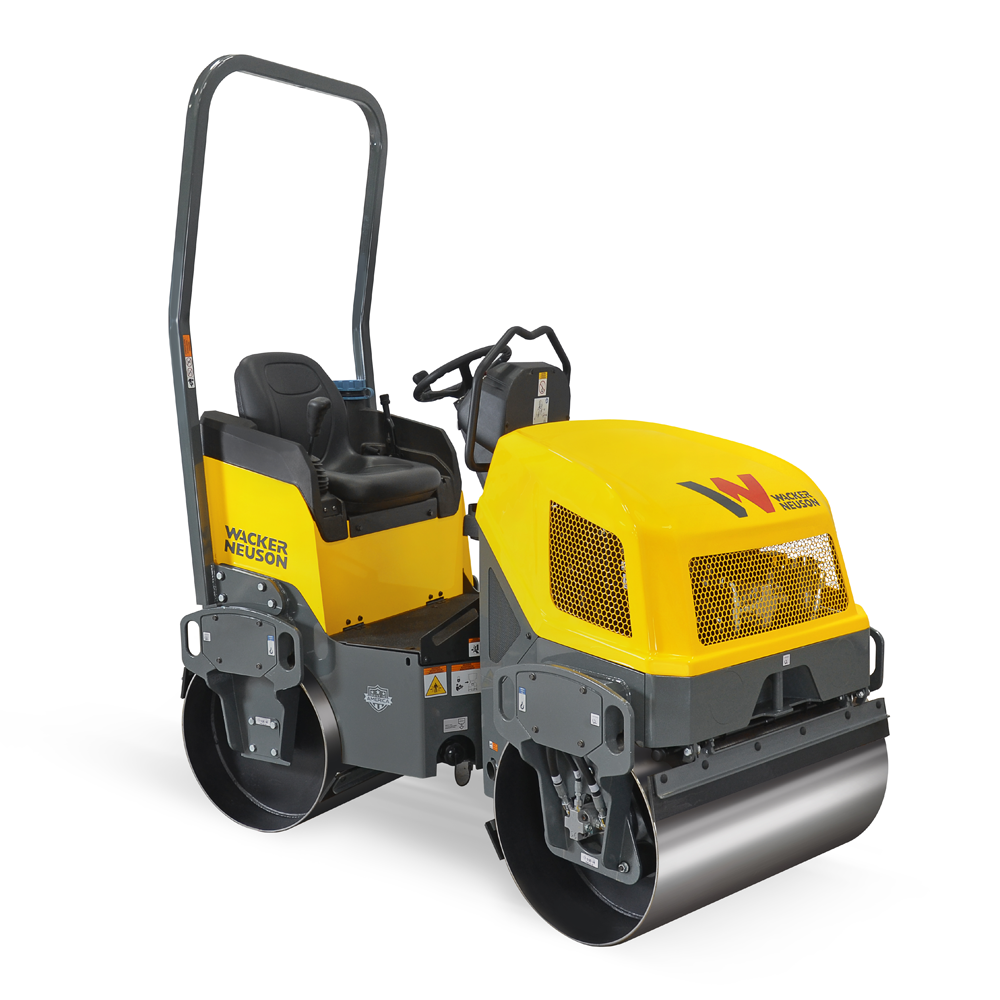

RD12A-90 - Tandem Roller

Name: RD12A-90 - Tandem Roller
Brand: Wacker Neuson
SKU: 5100038333
Availability: InStock

SKU 5100038333

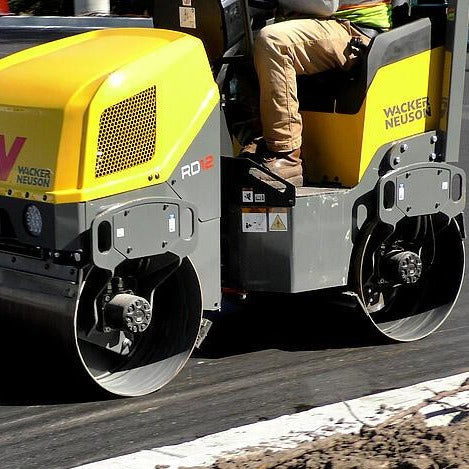

The robust and agile RD12A-90 tandem vibratory roller features a dual drum drive and articulated steering for superior maneuverability, making it an ideal choice for residential and commercial compaction of asphalt and granular subbase materials. Perfect for asphalt parking lots, driveways, secondary roads, nature trails, and turf rolling, it offers efficient compaction results in a compact package.

Enquire about this product

Technical Data

SPECIFICATIONS

Operating weight with operator: 1130kg
Dimensions (L x W x H): 1824 x 1,035 x 2,300mm
Drum width: 900mm
Drum diameter: 560mm
Side clearance right: 44mm
Side clearance left: 89mm
Curb clearance right: 399mm
Curb clearance left: 208mm
Centrifugal force dynamic (front drum): 15kN
Frequency: 70 Hz
Linear force - front/rear: 4.9 . 7.2 N/mm
Linear force dynamic (front): 16.8 N/mm
Travel speed forward: 8.7 km/h
Travel speed reverse: 8.7km/h
Surface capacity area: 7,830 m2/h
Gradeability max: 30%
Turning radius outside: 2,451mm
Engine type: air-cooled, 2 cylinder, gasoline engine
Engine manufacturer: Honda GX 630
Displacement: 688cm3
RPM: 3,100 rpm
Operating performance: 15.1kW
Fuel consumption: 6L.h
Fuel tank capacity: 23L
Water tank capacity: 100L
